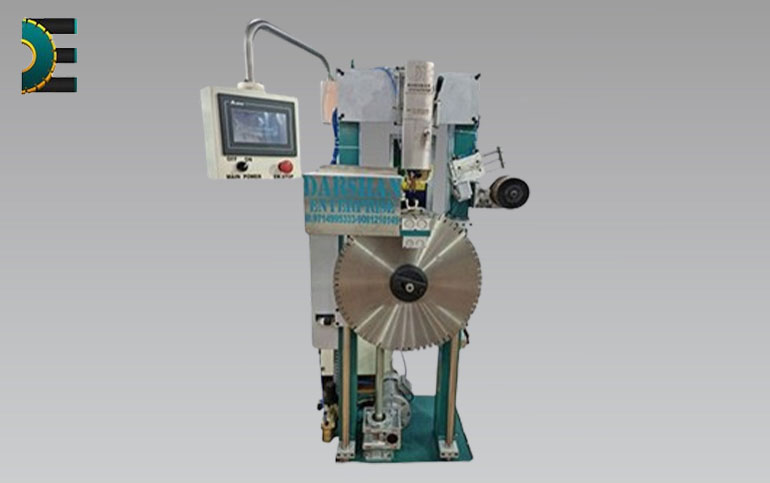

Fully Automatic Circular Saw Blade Segment Brazing Machine, Model: DKBM-2500AS (SERVO BASED)

Machine Features:

  • Suitable from Circular Saw Blade Dia. 600mm to 2500mm
  • All Auto Operations after Manually Feed the Segments with Brazing Strips and Flux.
  • Segment Position Accuracy: ± 0.20mm
  • Main Plate with Blade is Sliding (Up & Down) by Gear Box & Motor
  • Blade Rotate in Auto mode by Servo Motor on Each Brazing.
  • Auto Divide Teeth System
  • Stand Alone Control Panel with PLC
  • Movable Operating Panel with HMI
  • Pneumatic Pick & Place Gripper Type Head.
  • Manual/Auto Centering System for Segment (As per Requirement)
  • Internal Water-cooling system for Contact parts of Brazing
  • Auto Air & Water Pressure Switch Controlled by HMI
  • Heater Timing Can be controlled through HMI.
  • Sensor for No Segment No Brazing System
  • Sensor for Counting of Segments.
  • Limit Switches for Up & Down Sliding Plate to avoid accident.
  • Air Blower for Brazed Segments Cooling System
  • Roller Arrangement to easily rotate the blade.
  • All Pneumatic Cylinders having individual Auto controllable Switches.
  • 5µ Air Filter with Regulator and Lubricants.
  • Easy to Operate, Cleanable & Low Maintenance of Machine.

PROCESS OF OPERATION:

  • Manual Step: Machine On -> Load & Mount Blade -> Take Upper Side & Fix Blade Position -> Set One Time Servo on Position ->Put the Segment Between Two Ceramic Clamp ->
  • Auto Step: Sensor Sense the segment -> Automatic Blade Fixture Cylinder On -> Roller Cylinder On -> Head Down Direction to Blade -> Heater On ->Brazing Complete. -> Blade Rotate Auto as per Programming
