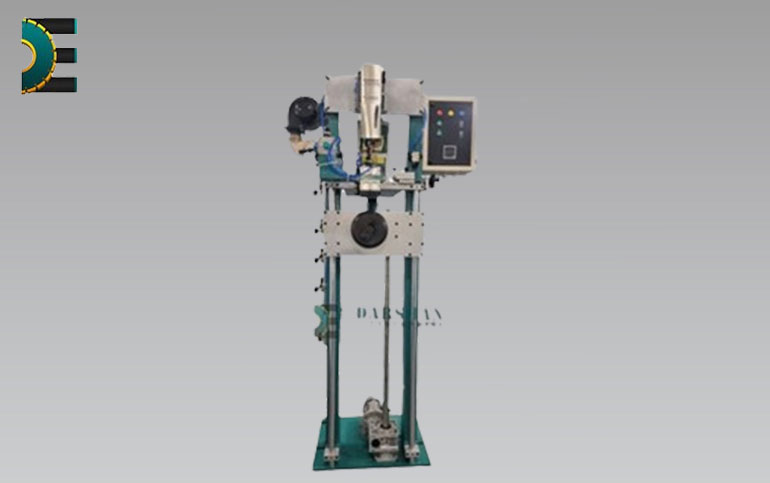

Machine Features:

• Suitable from Circular Saw Blade Dia. 600mm to 2500mm
• Additional Hole Arrangements for 3 Meter Dia. Of Blade in Blade Mounting Main Plate to easy changeover of Main Shaft with Housing. (As per Client’s Requirements)
• Semi-Auto Operation, Manually Feed the Segments with Brazing Strips and Flux.
• Segment Position Accuracy: ± 0.10mm
• Main Plate with Blade is Sliding (Up & Down) by Gear Box & Motor
• Machine Mounted Control Panel with Timer
• Additional Switch in Place of Foot Switch.
• Pneumatic Pick & Place Gripper Type Head.
• Arrangement of Micrometer for Segment Centering
• Internal Water-cooling system for Contact parts of Brazing
• Air Blower for Brazed Segments Cooling System
• Blade Stopper System
• Roller Arrangement to easily rotate the blade.
• All Pneumatic Cylinders having individual controllable gauges.
• 5µ Air Filter with Regulator and Lubricants.
