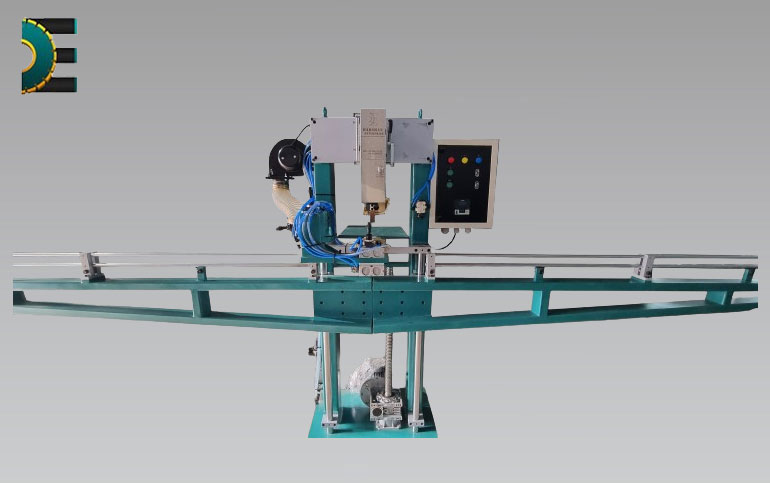

Machine Features:

• Suitable for Gang Saw Blade from Length. 600mm to 4400mm
• M.S Frame Structure for Machine Frame along with Provision of M.S Pipe Structure with Roller Guide to roll & Move Left to Right Direction easily For Mounting & Fixing Blade.
• Semi-Auto Operation, Manually Feed the Segments with Brazing Strips and Flux.
• Segment Position Accuracy: ± 0.10mm
• Main Plate with Blade is Sliding (Up & Down) by Gear Box & Motor
• Machine Mounted Control Panel with Timer
• Pneumatic Pick & Place Gripper Type Head.
• Arrangement of Micrometer for Segment Centering
• Internal Water-cooling system for Contact parts of Brazing
• Air Blower for Brazed Segments Cooling System
• Roller Arrangement to easily rolling of blade toward Left to Right direction.
• All Pneumatic Cylinders having individual controllable gauges.
• 5µ Air Filter with Regulator and Lubricants.
